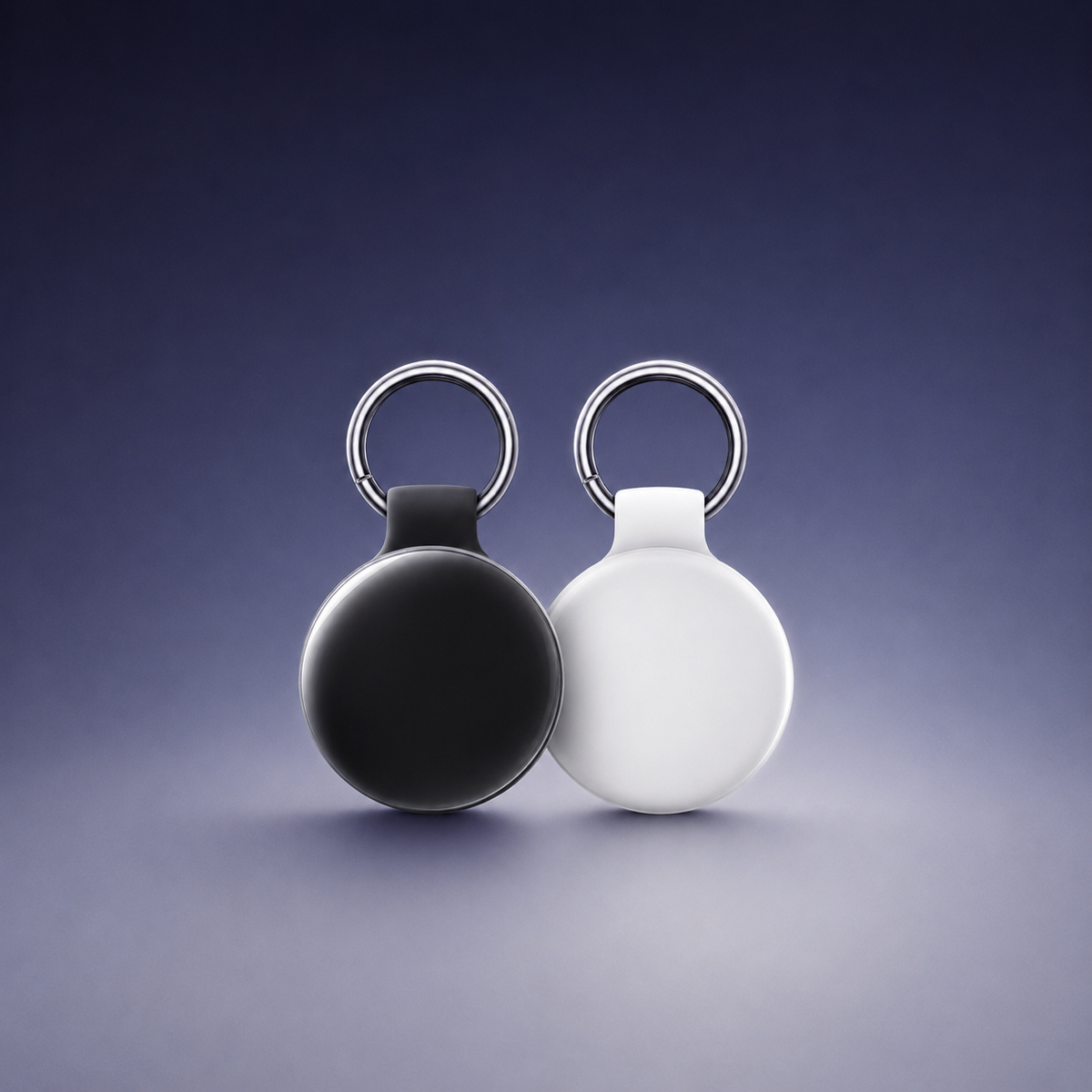

Battery Solution for a Compact Pet GPS Tracker

For compact pet GPS trackers, short battery life is often caused by two factors: limited battery capacity and high power consumption during operation.

In this project, the device had very limited internal space, so simply increasing the battery size was not a practical solution. The battery solution needed to improve energy output while keeping the original size as much as possible.

To solve this problem, a high energy-density cobalt-based lithium polymer cell was used. The voltage platform was also upgraded to a high-voltage system, with a nominal voltage of 3.85V. This helped increase the battery capacity within the existing battery size and improved the total battery energy by more than 20%.

Another challenge was assembly accuracy. The original battery solution had large dimensional tolerances, making it difficult to fit the battery into the battery compartment. The protection board layout also occupied too much internal space, reducing the effective space available for the battery cell.

The protection board position and structure were optimized to reduce wasted space when two cells were installed in parallel. This improved the effective battery space utilization by about 5% and made the assembly process smoother.

For small wearable devices, battery design is not only about finding a cell that can fit inside the product. The real challenge is balancing capacity, safety, structure, assembly accuracy, and space utilization at the same time.

The smaller the device, the more important the battery solution design becomes.

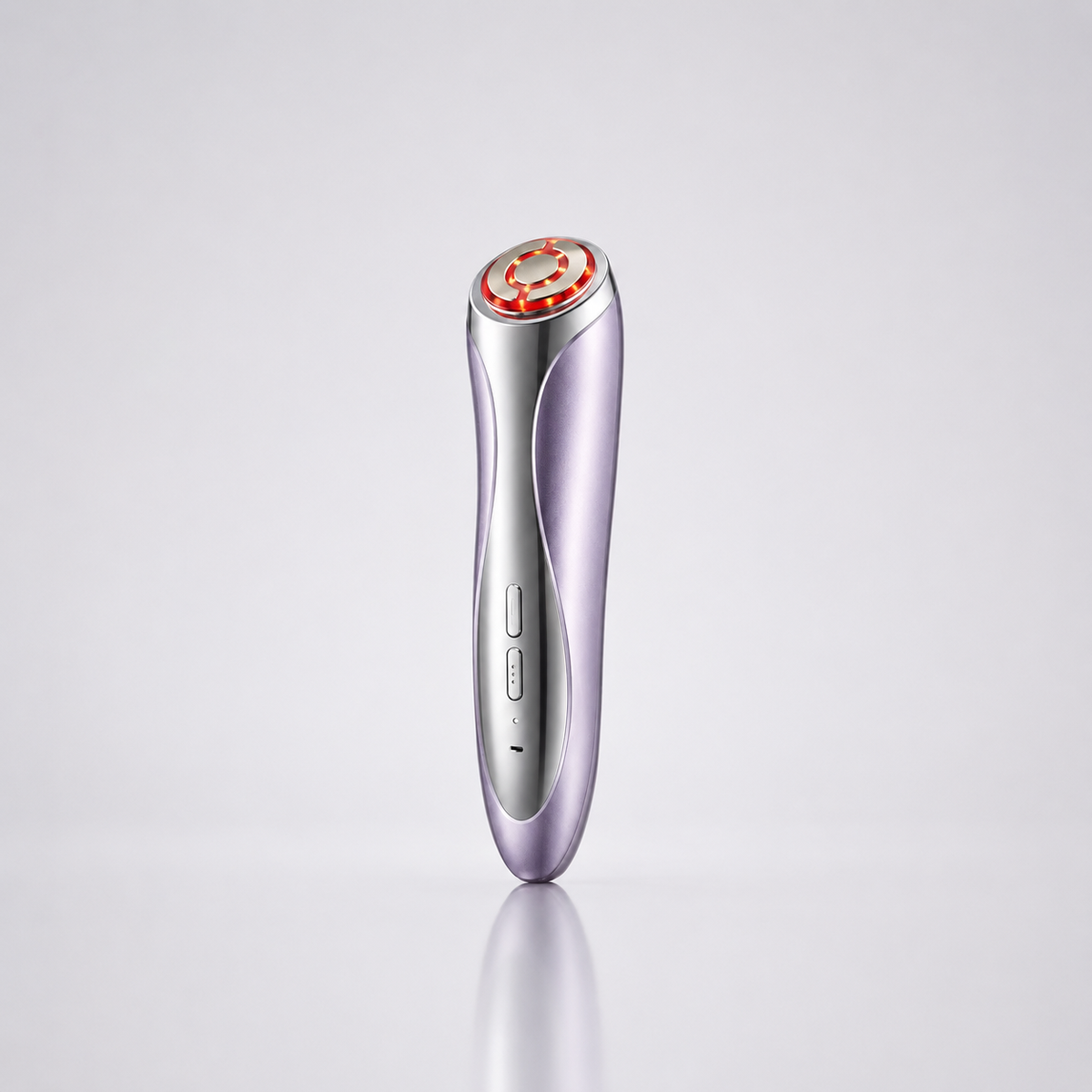

Battery Solution for a Portable Beauty Device

This portable beauty device had three main battery-related problems: battery swelling, failure in humid conditions, and sudden cut-off while the motor was running.

After checking the battery structure and working conditions, we found that the problem was not simply that the battery was poor. The real issue was that the battery solution did not fully match the device’s actual working environment.

The first problem was battery swelling.

When two cells are used together, cell consistency and overcharge tolerance become very important. If the two cells are not well matched, one cell may rise faster during charging. Once the voltage of a single cell is pushed too high, gas can form inside the cell more easily, which can lead to swelling.

To solve this problem, the two cells were re-matched before pack assembly. Aging tests and consistency tests were also carried out to align the voltage, capacity, and internal resistance of the cells as much as possible. This helped reduce the risk of swelling caused by poor cell matching and uneven charging behavior.

The second problem was moisture.

A beauty device like this often comes into contact with moisture during use. If the sealing and protection are not strong enough, water can slowly enter through gaps, interfaces, or around the board area. Over time, this can increase the risk of battery pack failure.

To improve reliability, the protection section and the whole pack protection were redesigned together. The goal was to strengthen moisture resistance and reduce the chance of water entering the battery pack.

The third problem was motor cut-off.

In many cases, sudden motor cut-off is not caused by the battery being empty. The real issue can be that the motor pulls too much current instantly when it starts or when the load increases. If the original protection board is too sensitive, it may trigger protection too early and cut off the device.

To solve this issue, the PCB solution and overcurrent protection logic were re-matched. The startup current threshold, delay setting, and the relationship between output and load were adjusted again.

After these adjustments, the motor became smoother during startup and operation, and the device no longer cut off easily when the load increased.

For portable beauty devices, the battery solution is not only about capacity. It also needs to match the device’s real working conditions, including cell consistency, moisture protection, current output, PCB design, and motor load behavior.

A stable battery pack must be designed around the actual device, not just the basic battery specifications.

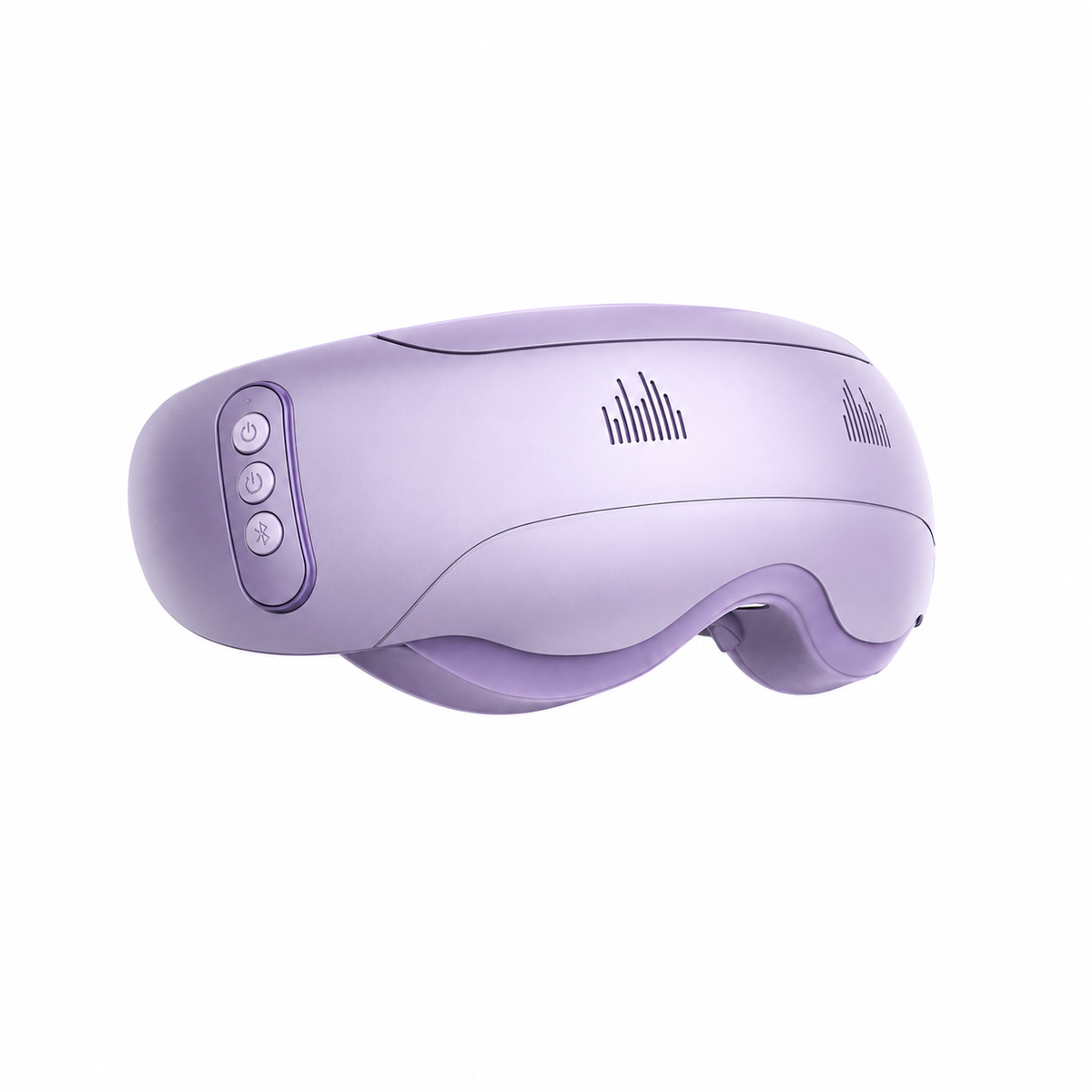

Battery Solution for a Device with Charging Failure and Short Battery Life

This project had two main battery-related problems.

The first problem was that the battery sometimes could not charge properly.

After testing the product, we found that the original battery solution could easily enter low-voltage protection mode after over-discharge. Once this happened, the charging recovery process did not work smoothly. From the user’s side, it looked like the battery could not charge, or the battery had already failed.

In fact, the battery was not necessarily broken. The real issue was that the protection logic and charging recovery logic were not properly matched. When the battery was discharged too deeply, the recovery charging process could get stuck.

To solve this problem, the charging recovery logic after over-discharge was adjusted. This helped the battery recover more properly from low-voltage protection and reduced the chance of charging failure.

The second problem was short battery life.

In the original solution, there was a gap between the rated capacity and the real usable capacity. The battery specifications looked acceptable on paper, but after the battery was installed in the actual device, the usable runtime was much shorter than expected.

To improve this, the cell capacity solution was redesigned. The goal was to increase the real usable capacity within the same battery size, instead of only improving the numbers shown on the specification sheet.

After these changes, the charging problem improved, and the battery life became more stable during actual use.

For battery-powered devices, paper specifications are not enough. A reliable battery solution must match the product’s real working conditions, including over-discharge recovery, protection logic, usable capacity, and actual runtime performance.

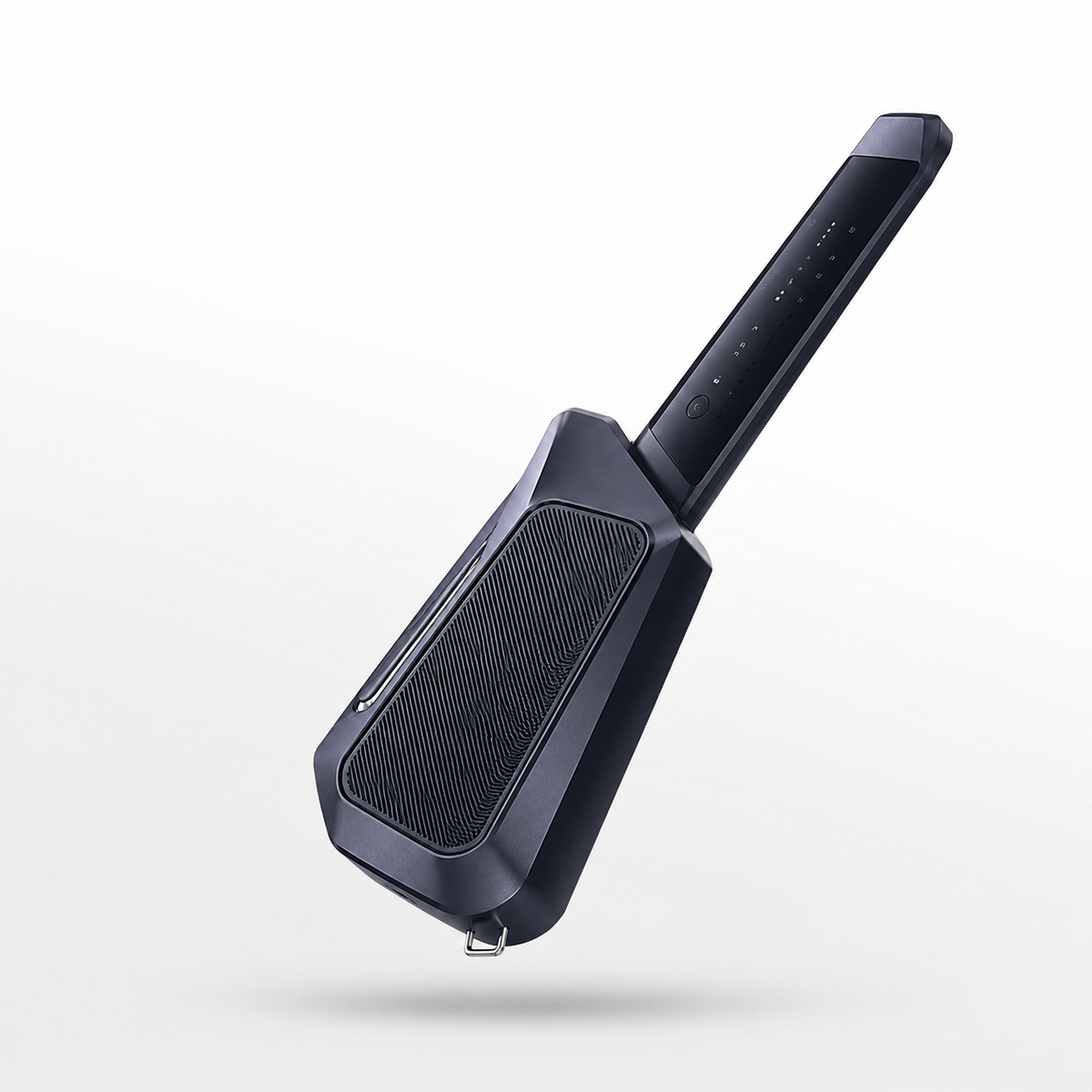

Battery Solution for a Smart Guitar

This smart guitar battery project had two main problems: short battery life and battery swelling risk.

After checking the product structure and usage conditions, we found that the two problems were connected. The guitar used a charging dock, which meant the battery could enter frequent charging whenever the product was placed on the dock.

If the user left the guitar on the dock for too long, or if the charging dock did not stop charging at the right time, the battery could remain in an unhealthy charging state. Over time, this increased the risk of overcharge and battery swelling.

To solve this problem, the solution was not simply to replace the cell. The charging logic needed to be redesigned.

A battery level indicator was added so the user could better understand the battery status. The discharge cut-off voltage and overcharge protection parameters were also adjusted to reduce overcharge risk and improve battery safety.

The second problem was battery life.

The internal battery space of the guitar was fixed, so the battery size could not simply be increased. The battery compartment size was rechecked, and a high-voltage cobalt-based cell system was used to improve capacity and voltage platform performance within the same limited space.

This helped the device achieve better runtime while keeping the battery design matched to the product structure.

For electronic products, battery capacity on paper is not enough. The battery solution must match the real usage environment, charging method, internal structure, voltage stability, and safety requirements of the device.

That is the difference between choosing a battery and designing a complete battery solution.

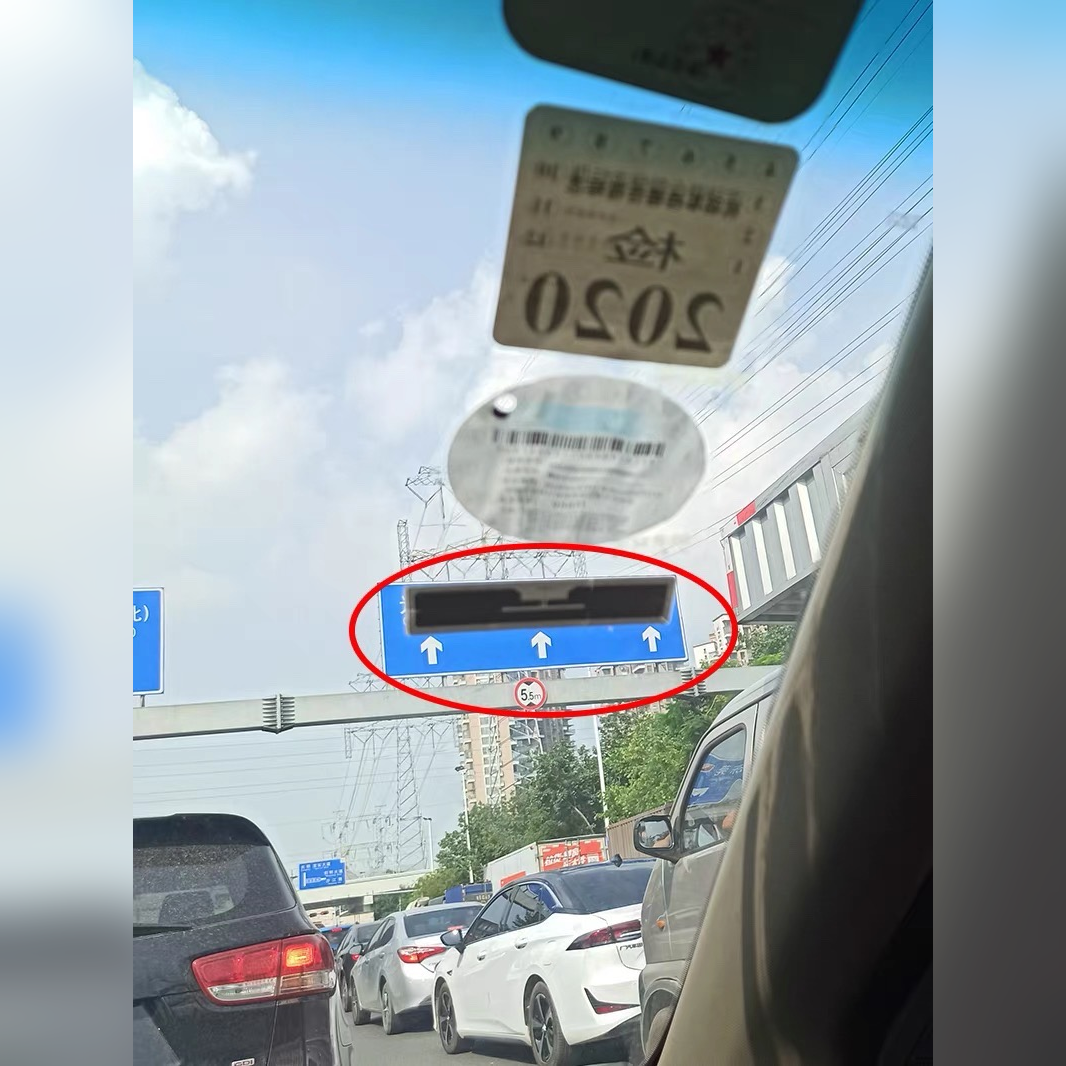

Battery Solution for a Smart Vehicle Identification Tag

This smart vehicle identification tag required a thin battery that could be installed close to the car window. The battery needed to meet three key requirements: 1mm thickness, high-temperature resistance, and long service life.

The first challenge was thickness.

When the battery thickness is reduced to 1mm, the difficulty is not only making the battery thinner. The electrodes, separator, electrolyte wetting space, packaging structure, and safety margin for thermal expansion and contraction are all compressed at the same time.

This means the battery must balance capacity, structural strength, and stability within a very limited space. For this project, the key challenge was not simply producing a 1mm battery, but maintaining reliable performance within that thin structure.

The second challenge was high-temperature performance.

Because the tag was installed close to the car window, the battery had to withstand long-term summer heat inside a vehicle. If the material system and design parameters are not properly matched, high temperatures can cause faster capacity loss and accelerated degradation.

To improve high-temperature stability, the battery solution was adjusted. Even in an 80°C high-temperature environment, the battery could still retain more than 95% of its capacity.

The third challenge was lifespan.

This type of vehicle identification tag does not consume much power each time, but it needs to work reliably over a long period. To support long-term use, the material formula and electrolyte system were adjusted.

The goal was to make the internal reactions of the battery more stable. During charging and discharging, lithium ions could move more smoothly, helping reduce internal resistance, heat generation, and rapid degradation.

As a result, after high-temperature exposure and repeated charging and discharging, the battery capacity dropped more slowly, and the overall lifespan was improved.

For smart vehicle identification tags, the battery solution must consider more than thickness. It also needs to match the product’s installation environment, temperature exposure, service life requirements, and long-term stability.

Battery Solution for a Camera-Mounted LED Video Light

This camera-mounted LED video light required three key improvements: longer runtime, faster charging, and a compact battery design that would not make the device much bigger or heavier.

The target was to support about 5 hours of continuous operation and reduce charging time from more than 3 hours to around 1 hour.

After checking the internal structure, the main challenge became clear. The video light was already very compact. The LED board, control board, heat dissipation parts, buttons, and housing structure had already taken most of the internal space. There was very little room left for the battery.

The first step was to redesign the battery size based on the actual internal structure of the light. The wire exit direction and the position of the protection board were also adjusted.

In compact devices, these details directly affect usable battery space. If the wire exits from the wrong side, the cable needs to bend around inside the product, which wastes space. If the protection board is placed poorly, it takes space away from the cell itself and reduces the available space for real battery capacity.

After optimizing the layout, the battery space utilization inside the light increased by about 20%.

The second step was to improve the battery’s volumetric energy density.

The customer did not only need a battery that could fit inside the product. The battery also had to support about 5 hours of continuous lighting. For this project, a high-capacity-density solution with an 811 high-capacity system was used. The battery’s overall volumetric energy density reached about 550 Wh/L.

By improving both the internal space layout and the cell chemistry, the new battery capacity increased by about 50% compared with the previous version. This allowed the LED video light to run for about 5 hours continuously.

The third step was to improve fast-charging performance.

The customer wanted to reduce charging time from more than 3 hours to around 1 hour. This could not be solved by simply increasing the charging current. If the cell has high internal resistance, higher charging current can create more heat during charging, reduce battery life, and increase safety risks.

To support faster charging more safely, a multi-tab design was used to reduce the battery’s internal resistance. After internal resistance was reduced, heat stress during charging also decreased, allowing the battery to accept a higher charging current more stably.

The tail end of the constant-voltage charging stage was also shortened to help improve overall charging efficiency.

For compact LED video lights, the battery solution is not only about increasing capacity. It needs to match the product’s internal structure, space limitations, heat conditions, runtime target, charging speed, and safety requirements at the same time.

A reliable battery solution should help the product achieve stable long-term performance, not just meet the basic specifications on paper.
