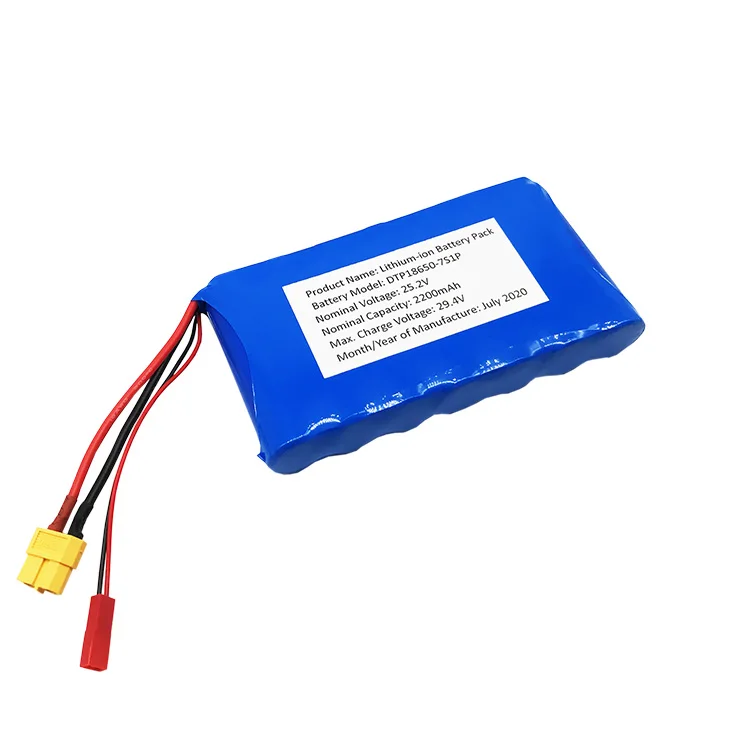

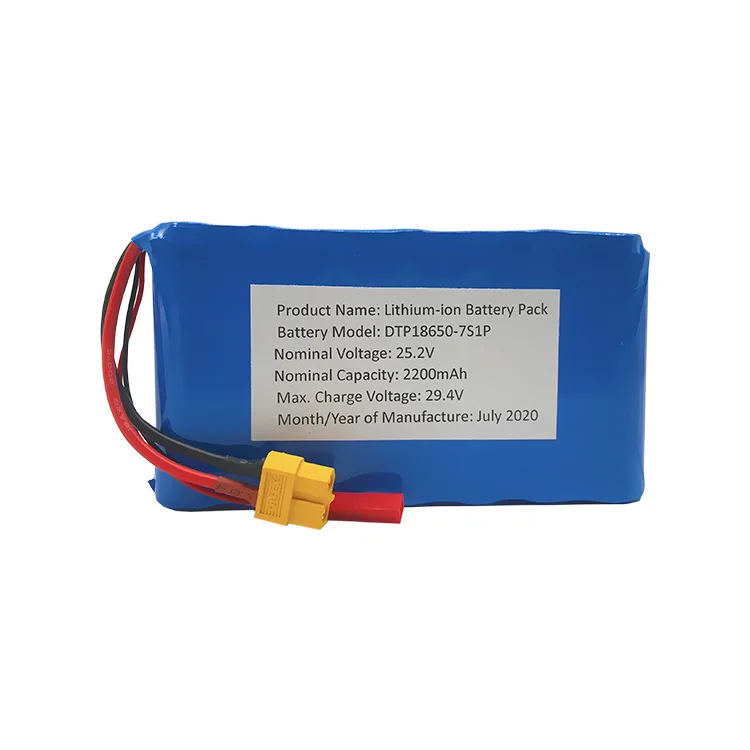

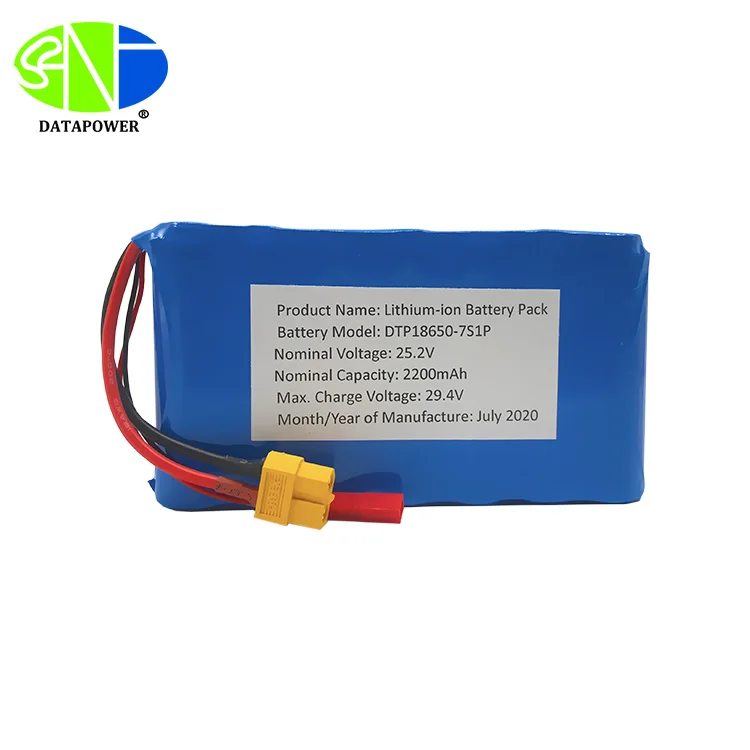

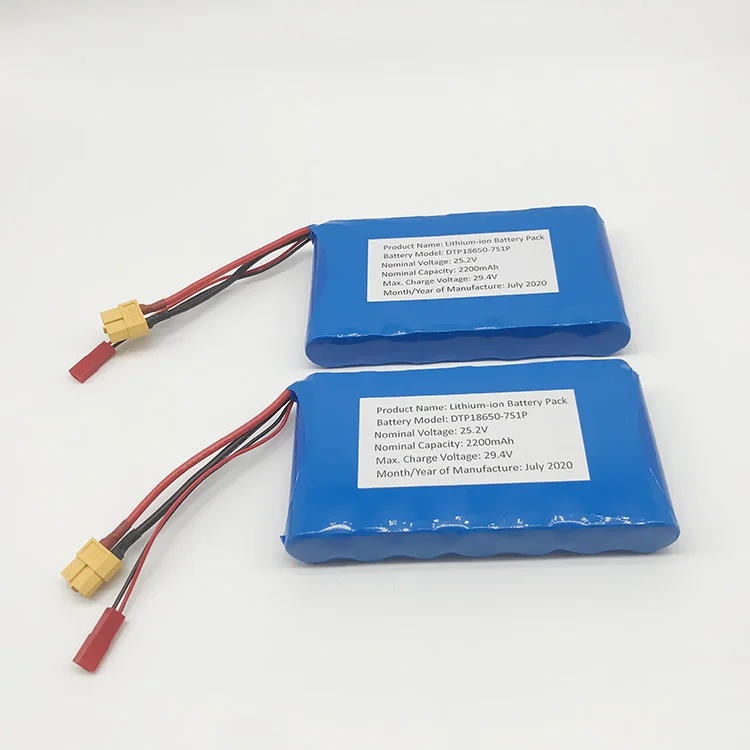

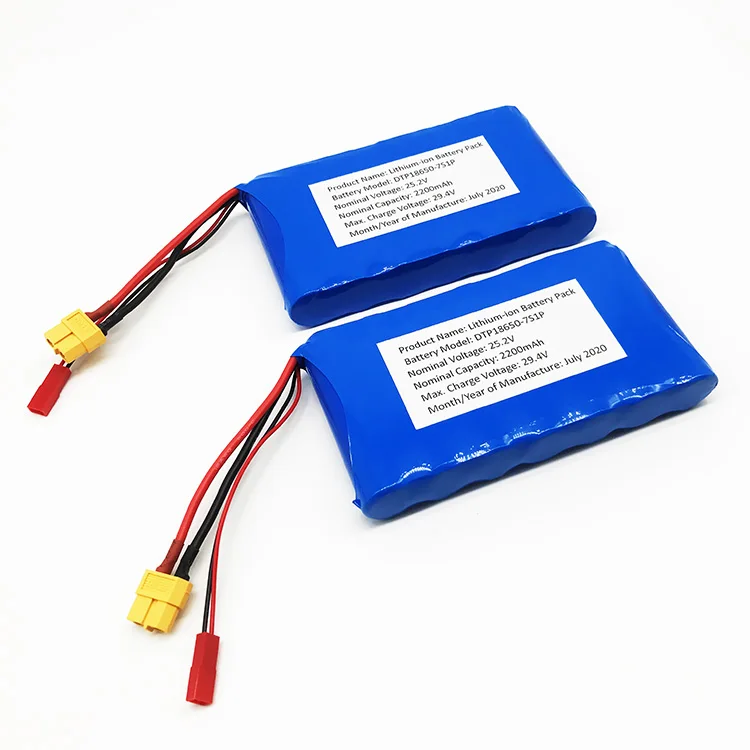

Battery Specification
| Model | 18650-7S1P | Capacity | 2200 mAh |
|---|---|---|---|
| Nominal Voltage | 25.2 V | Max Charge Voltage | 29.4 V |
| Internal Resistance | <90 mΩ | Typical Weight(Cell only) | 357.3 g |
| Cell dimensions (T×W×L) | Single 18650 cell size: Ø18 mm × 65 mm (L) | ||

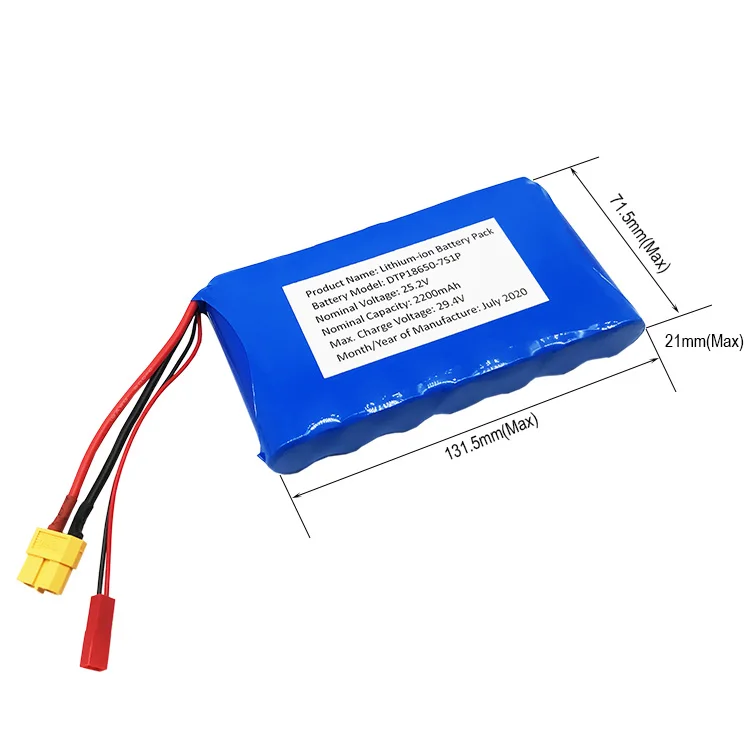

| Pack dimensions (with PCM & wires) | 18.3 * 68 * 130 mm （Height × Width × Length） Note: Final dimensions may vary depending on PCM placement, wire routing, connector type, or custom installation requirements. | ||
| Connector | Molex/JST/Customized | ||
| Charging Temperature | 0℃ to 45℃ | ||
| Discharging Temperature | -20℃ to 60℃ | Recommend Storage Temperature | Recommended storage temperature: Room temperature (15–35°C) Storage temperature range: -20–45°C (short-term) |
| Cycle Life |
100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80% |
||
| Certification | Many of our factory’s products have already obtained certifications such as CE, RoHS, KC, PSE, FCC, UN38.3, MSDS, UL, CB and BIS | ||
| Model | 18650-7S1P |
|---|---|
| Capacity | 2200 mAh |
| Nominal Voltage | 25.2 V |
| Internal Resistance | <90 mΩ |
| Typical Weight(Cell only) | 357.3 g |
| Max Charge Voltage | 29.4 V |
| Cell dimensions (T×W×L) | Single 18650 cell size: Ø18 mm × 65 mm (L) |
| Pack dimensions (with PCM & wires) | 18.3 * 68 * 130 mm （Height × Width × Length） Note: Final dimensions may vary depending on PCM placement, wire routing, connector type, or custom installation requirements. |
| Connector | Molex/JST/Customized |
| Charging Temperature | 0℃ to 45℃ |
| Discharging Temperature | -20℃ to 60℃ |
| Recommend Storage Temperature | Recommended storage temperature: Room temperature (15–35°C) Storage temperature range: -20–45°C (short-term) |
| Cycle Life | 100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80% |
| Certification | Many of our factory’s products have already obtained certifications such as CE, RoHS, KC, PSE, FCC, UN38.3, MSDS, UL, CB and BIS |
Current Specs & Protection
| Standard Charge Current | 0.2C (0.44A) | Standard Discharge Current | 0.2C (0.44A) |
|---|---|---|---|
| Max. Continous Charge Current | 0.5C (1.1A) | Max. Continous Disharge Current | 0.5C (1.1A) |
| Discharge Cut Off | 19.25 V | Energy | 55.44 Wh |
| Configuration | 7S1P | Pcm/Wire | Yes / Optional / Customized |
| NTC | NO / Optional | C-rate | 1.0C |
| Self Discharge Rate | ≤ 3%/month (at 25°C) | Short Protection | Yes |
| Overdischarge Detection | For multi-series battery packs, the PCM/BMS is selected based on the required continuous current and peak/inrush current (including OCP trip thresholds, delay settings, and current-handling capability), together with per-cell voltage monitoring requirements. After the hardware version is selected, the over-charge and over-discharge thresholds (and balancing strategy, if applicable) are finalized. Alternative PCM/BMS versions are available if specific protection thresholds or delay requirements are needed. |
Overcharge Detection | Typical trip 4.25–4.30V (common options: 4.25/4.28/4.30V), delay 50–200ms, release 4.05–4.15V. (Pack-level thresholds scale with series count, e.g., OVP_pack ≈ OVP_cell × S.) PCM/BMS dependent) are selected based on the required continuous current and peak/inrush current. Our engineers will match the PCM/BMS to your application to ensure reliable operation and avoid nuisance trips. |
| Overcurrent Detection | Multiple PCM/BMS versions are available with different over-current protection (OCP) ratings, typically ranging from 3A to 20A+, depending on the series/parallel configuration and application. OCP trip value and delay (typically 9–15ms, PCM/BMS dependent) are selected based on the required continuous current and peak/inrush current. Our engineers will match the PCM/BMS to your application to ensure reliable operation and avoid nuisance trips. |
||
| Standard Charge Current | 0.2C (0.44A) |
|---|---|
| Standard Discharge Current | 0.2C (0.44A) |
| Max. Continous Charge Curren | 0.5C (1.1A) |
| Max. Continous Disharge Current | 0.5C (1.1A) |
| Discharge Cut Off | 19.25 V |
| Energy | 55.44 Wh |
| Configuration | 7S1P |
| Pcm/Wire | Yes / Optional / Customized |
| NTC | NO / Optional |
| C-rate | 1.0C |
| Self Discharge Rate | ≤ 3%/month (at 25°C) |
| Short Protection | Yes |
| Overdischarge Detection | For multi-series battery packs, the PCM/BMS is selected based on the required continuous current and peak/inrush current (including OCP trip thresholds, delay settings, and current-handling capability), together with per-cell voltage monitoring requirements. After the hardware version is selected, the over-charge and over-discharge thresholds (and balancing strategy, if applicable) are finalized. Alternative PCM/BMS versions are available if specific protection thresholds or delay requirements are needed. |
| Overcharge Detection | Typical trip 4.25–4.30V (common options: 4.25/4.28/4.30V), delay 50–200ms, release 4.05–4.15V. (Pack-level thresholds scale with series count, e.g., OVP_pack ≈ OVP_cell × S.) PCM/BMS dependent) are selected based on the required continuous current and peak/inrush current. Our engineers will match the PCM/BMS to your application to ensure reliable operation and avoid nuisance trips. |
| Overcurrent Detection | Multiple PCM/BMS versions are available with different over-current protection (OCP) ratings, typically ranging from 3A to 20A+, depending on the series/parallel configuration and application. OCP trip value and delay (typically 9–15ms, PCM/BMS dependent) are selected based on the required continuous current and peak/inrush current. Our engineers will match the PCM/BMS to your application to ensure reliable operation and avoid nuisance trips. |
